Description

Product Data Sheet

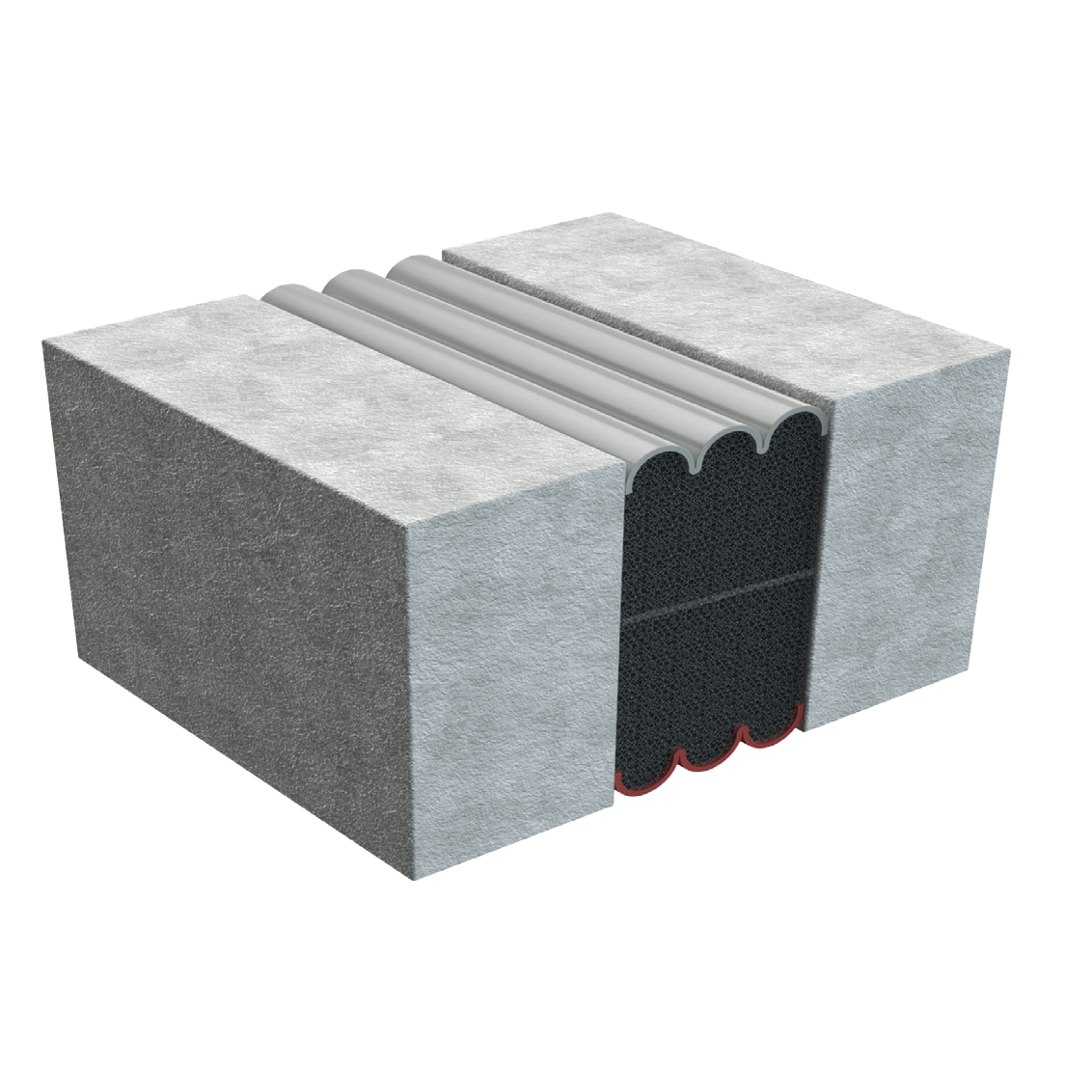

Willseal® FR-H is a fire-rated, pre-compressed, sound-attenuating expansion seal with an integral smoke barrier within the foam body and a pre-cured, traffic-rated, factory-applied sealant coating on the face. Willseal FR-H is comprised of a UV stable, fire-retardant impregnated foam, that is designed to be used in horizontal expansion joints by itself, but can also be used behind any other expansion joint cover, plate, or filler where joint depth allows.

Features & Benefits

Willseal FR-H has been tested and certified under UL 2079 and includes an integral smoke barrier. Willseal FR-H is availableuncoated or coated with a sealant facer. If coated, Willseal FR-H can besingle-side coated ordouble-side coated. As a standard Willseal FR-H is coated withatraffic-grade sealant.

• 2-& 3-hour fire rated seal when installed in accordance with a UL tested firestop system
• STC rating of 54, OITC rating of 48
• Integrated smoke barrier prevents toxic gases and fumes from passing thru the joint
• Meets UL 2079 (ASTM E1966) and CAN/ULC-S115

Willseal FR-H provides a watertight seal in dynamic joints. It accommodates for rapid rates of joint movement and allows for up to 100% movement (±50%movement).

• Has excellent compression recovery
• Utilizes non-invasive anchoring

Colors

• Concrete Gray
• Highway Gray
• Traffic-Grade Black
• Industry standard colors and custom colors are available upon request
