3M™ VHB™ Tape Max Series

Maximum Strength Meets Maximum Efficiency

Unleash the Future of Bonding

Engineers often face limitations with mechanical fasteners, messy adhesives, and other tapes. The new 3M™ VHB™ Tape Max Series addresses these limitations through advanced adhesive technology that takes acrylic foam tape performance to the next level.

📞 Ready to Upgrade Your Bonding Game?

Contact us today for technical support, custom slitting options, or pricing.

3M Preferred Adhesive Dist_LockUp_RGB

Why Choose 3M™ VHB™ Tape Max Series?

• High strength bonding system up to 470psi (3.24 Mpa) OLS

• Design flexibility – do more with less!

• Immediate handling strength

• Maintains viscoelasticity and stress relaxation properties

Industry Applications

• OEM Equipment

• Box Trucks / Dry Vans

• Appliance

• Building Components

• Bus

• Specialty Vehicle

• HVAC

• General Industrial

• Auto Display

Application Best Practices

• Surfaces must be clean and dry—use 3M™ VHB™ Tape Max Promoter for maximum adhesion

• Achieve full bond strength in 72 hours, or speed it up with heat (150°F for 1 hour)

• Ideal for static and dynamic loads, with excellent temperature resistance up to 356°F short-term

💡 Note: 3M™ VHB™ Tape Max Series cannot be used in powder coating cycles unless applied post-process

Available Thicknesses

Model	Thickness	Shear Strength	Tensile Strength

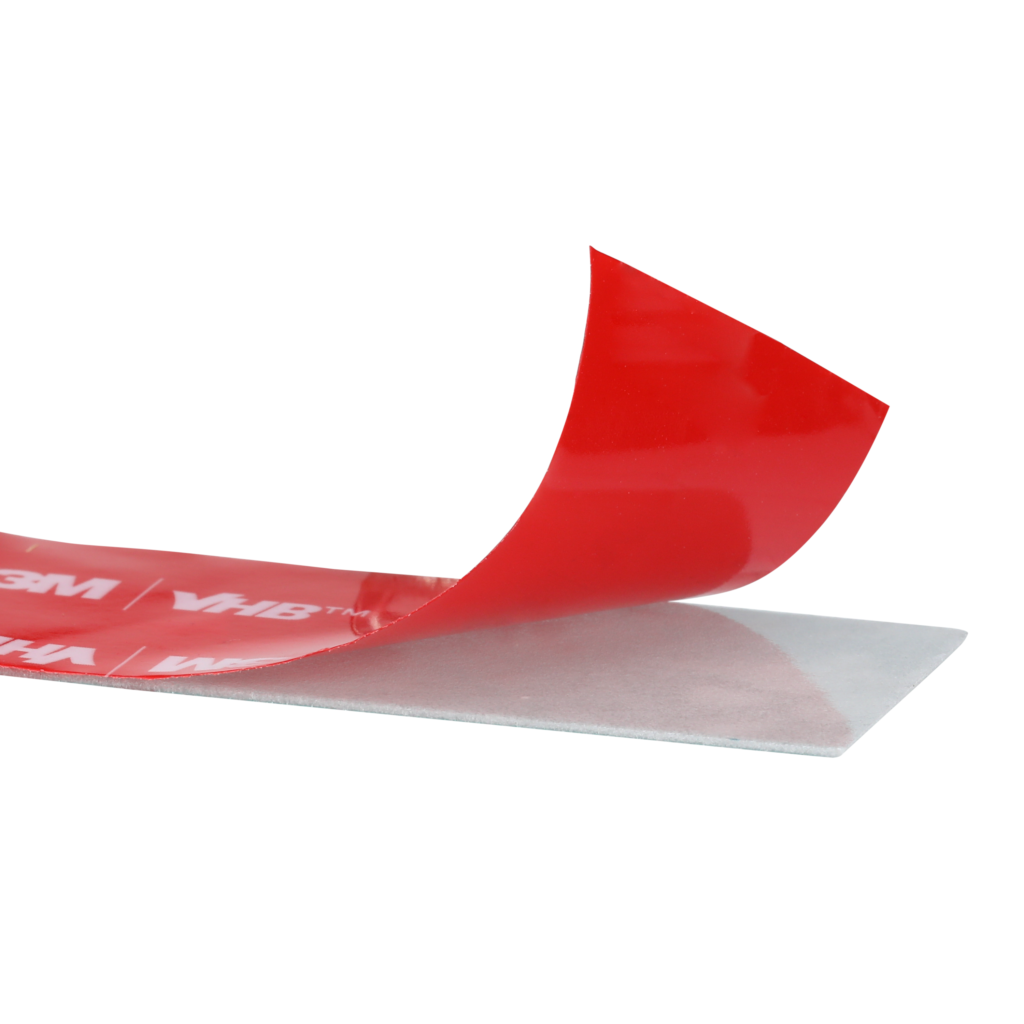

3M™ VHB™ Tape Max-060GF	0.6 mm	470 psi	320 psi

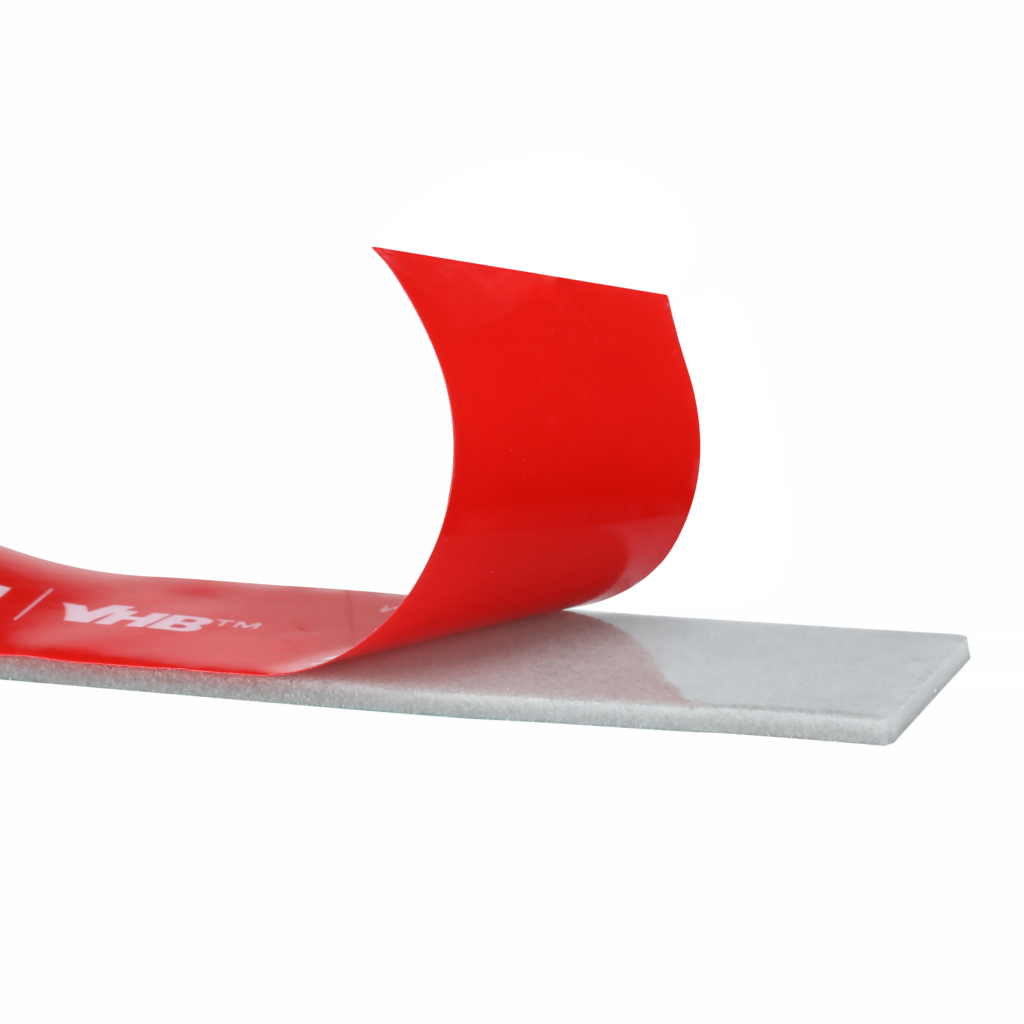

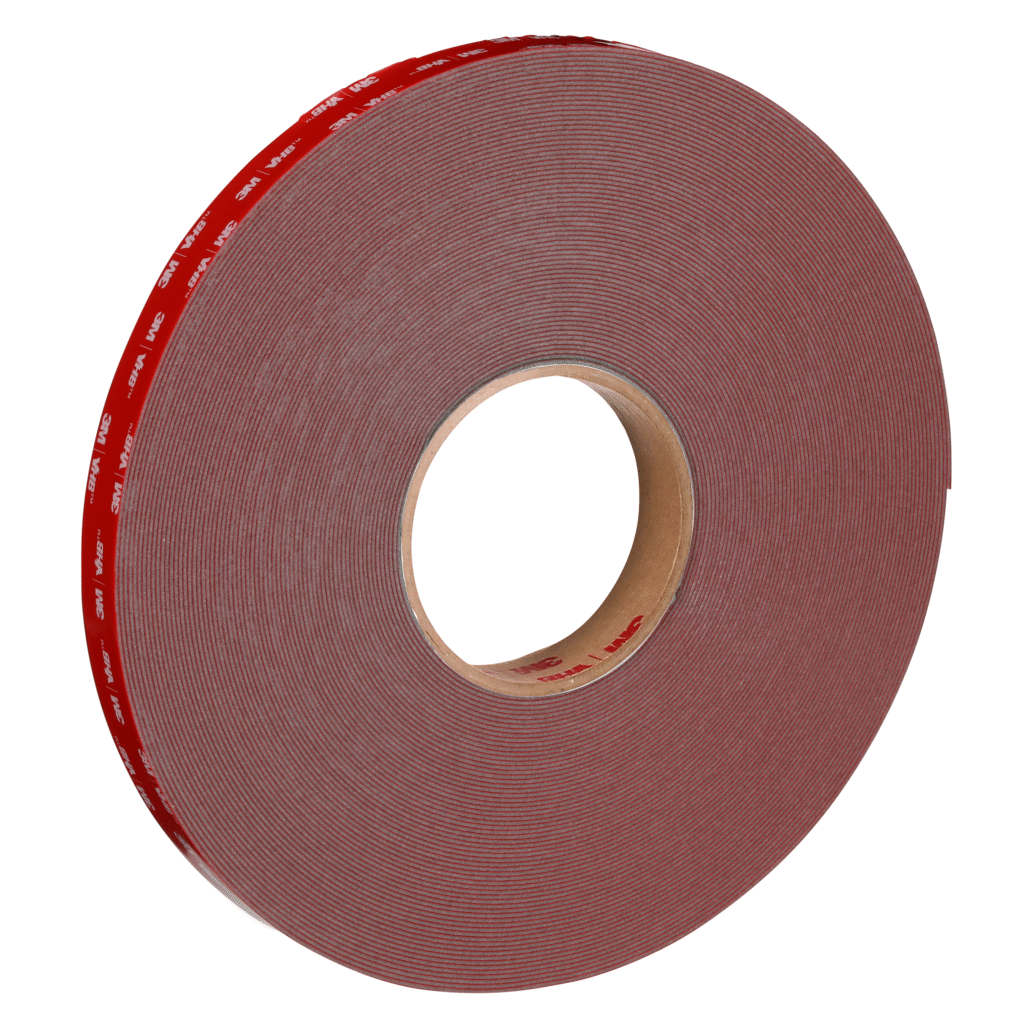

3M™ VHB™ Tape Max-110GF	1.1 mm	395 psi	275 psi

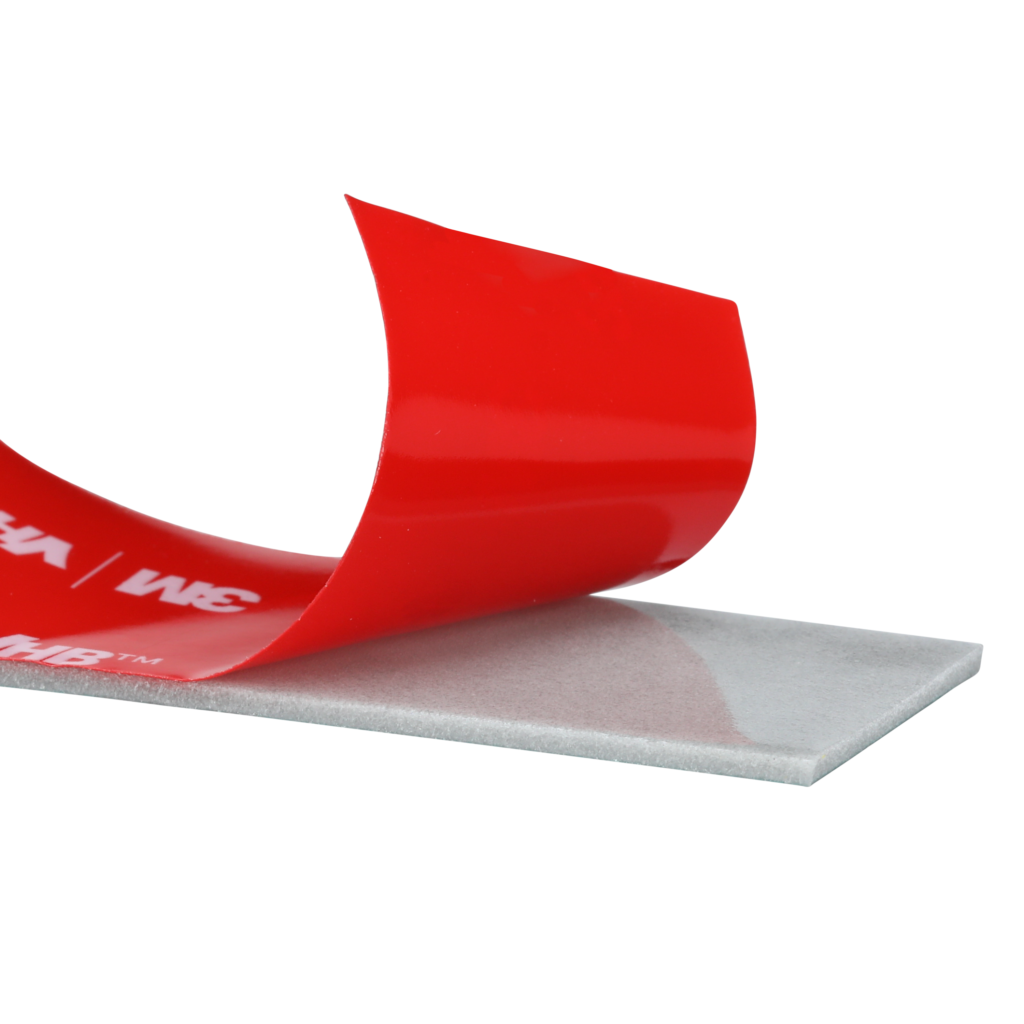

3M™ VHB™ Tape Max-160GF	1.6 mm	345 psi	250 psi

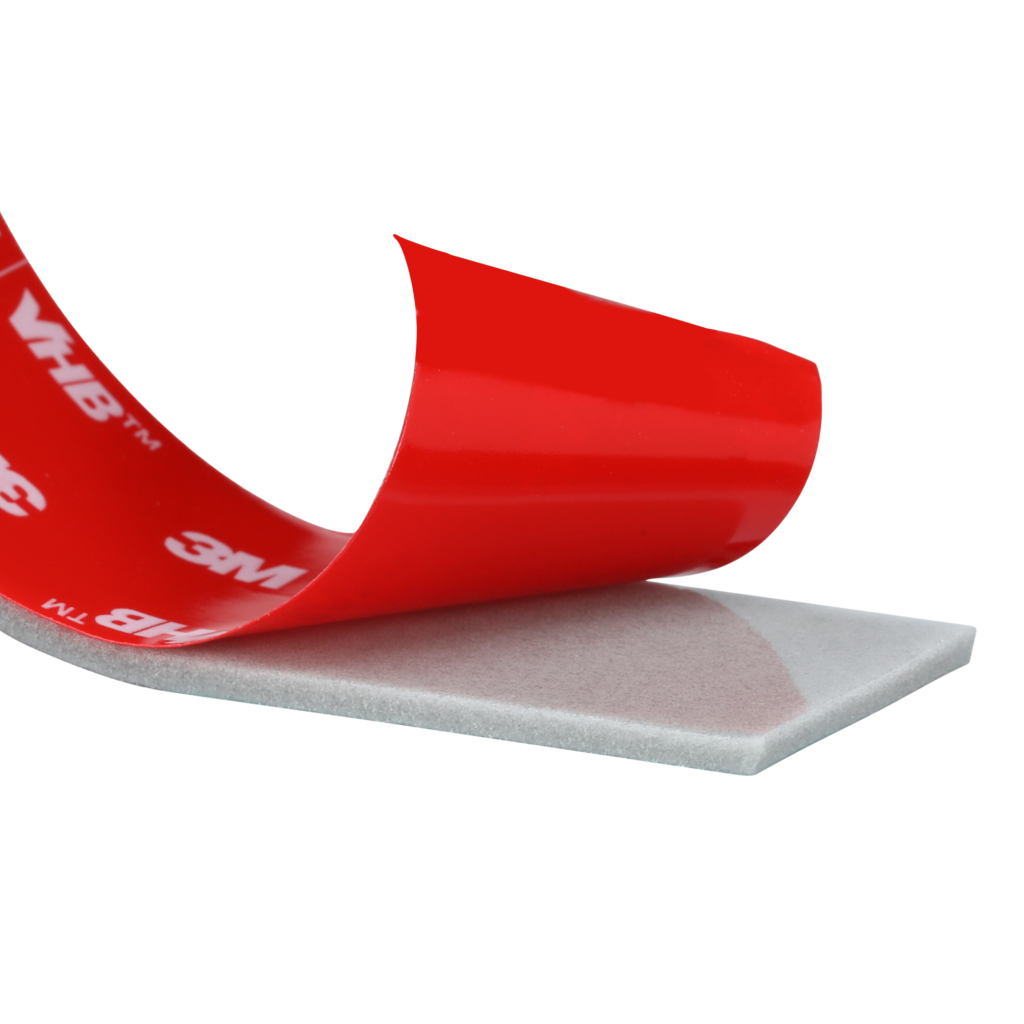

3M™ VHB™ Tape Max-230GF	2.3 mm	255 psi	230 psi
